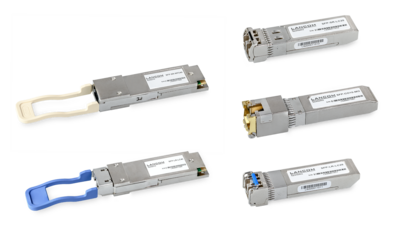

R&S®LANCOM transceiver modules
Flexible connections for your switches, routers, and firewalls
R&S®LANCOM switches, routers, and firewalls with integrated SFP ports are characterized by maximum versatility in use. Be it for high-speed fiber-optic networking or as a copper-cabled Ethernet port: R&S®LANCOM transceiver modules provide the specialized connections you need for your R&S Networks and Cybersecurity device. And thanks to the tried-and-tested compatibility with R&S Networks and Cybersecurity products, R&S®LANCOM Transceiver offer the best connections and highest reliability.
The R&S®LANCOM transceiver modules for fiber-optic networking of components in Gigabit speed are compatible with SFP ports of all of the switches, routers and Unified Firewalls listed in the table below.

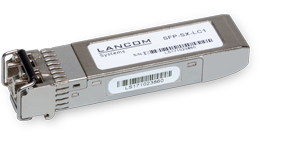

- 1000BASE-SX standard (SFP)
- Up to 1 Gbps link speed
- Full-duplex mode
- Supports 50/125 µm (550 m cable length) and 62.5/125 µm (300 m cable length) multi mode fiber
- Wavelength 850nm
- Operating temperature 0–70 °C
- LC connector
- Support of digital diagnostic monitoring (DDM)*
- Also available as 10-piece bulk package
* This functionality is only supplied by SFP modules of the latest generation (to be recognized from the LANCOM logo) and not in connection with R&S®LANCOM Unified Firewalls.
* This functionality is only supplied by SFP modules of the latest generation (to be recognized from the LANCOM logo) and not in connection with R&S®LANCOM Unified Firewalls.

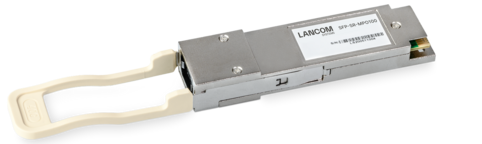

- 100GBASE-SR4 QSFP module (QSFP28)
- Up to 100 Gbps link speed
- Supports 50/125 µm multi mode fiber (max. distance: OM3: 70 m, OM4: 100 m)
- Wavelength 850 nm (4 channels)
- Operating temperature 0-70 °C
- MPO port (MPO 12-connector)
- Connection to QSFP28 ports
- Swappable during system operation
- Also available as 10-piece bulk package
Bidirectional transceiver modules require only a single optical fiber for data transmission, which simplifies network provisioning, cabling, and configuration.
R&S®LANCOM SFP-BiDi1550-SC1
For 1G fiber-optic networking of R&S Networks and Cybersecurity products
- Transmitting and receiving via only one optical fiber with two separate
- wavelengths (1310 nm / 1550 nm)
- SC/UPC connector
- Up to 1 Gbps link speed
- Full duplex operation
- Supports 9/125 µm (20 km cable length) single mode fiber
- Support for Digital Diagnostic Monitoring (DDM)
- Swappable during system operation (hot-pluggable)

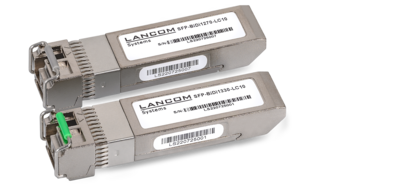

R&S®LANCOM SFP-BiDi1310-LC10
For 10G fiber-optic networking of R&S Networks and Cybersecurity products
- Transmitting and receiving via only one optical fiber with two separate
- wavelengths (1270 nm / 1330 nm)
- LC/UPC connector
- Up to 10 Gbps link speed
- Full duplex operation
- Supports 9/125 µm (20 km cable length) single mode fiber
- Support for Digital Diagnostic Monitoring (DDM)
- Swappable during system operation (hot-pluggable)
In order to use a SFP port of the devices listed in the table below for Gigabit speed over copper lines, we offer the following transceiver modules:
- RJ45 Ethernet transceiver 1000BASE-T
- Up to 1 Gbps link speed
- Full-duplex mode
- Operating temperature 0–70 °C
- Also available as 10-piece bulk package

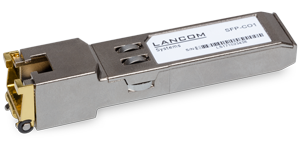

Note: For operating R&S®LANCOM SFP-CO1 in a R&S®LANCOM switch, a firmware LCOS SX 3.30 RU3 or higher is required. The firmware is available in our download section.
The optical transceivers (SFP modules) offered here have been tested and approved across all models by R&S Networks and Cybersecurity quality assurance. This means that you receive the full warranty and manufacturer support for these modules. Please note that support for third-party accessories (SFP) is excluded.
Notes:

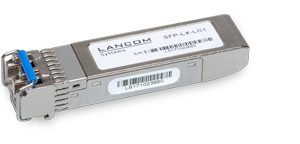

- The modules SFP-SX-LC1, SFP-LX-LC1, and SFP-SX2-LC1 are downward compatible with the 1 Gbps SFP interfaces of all R&S®LANCOM Unified Firewalls and R&S®LANCOM Switches.
- The module SFP-CO1 is not suitable for R&S®LANCOM GS-13xx, R&S®LANCOM 190x, and R&S®LANCOM 2326x(+), as these products are equipped with combo ports.
|

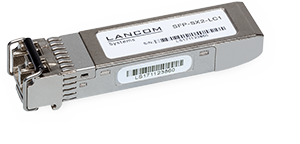

SFP-SX-LC1 / SFP-SX2-LC1 / SFP-LX-LC1 |

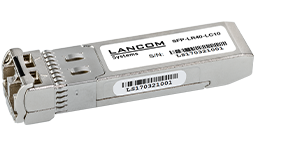

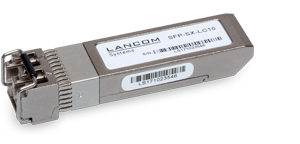

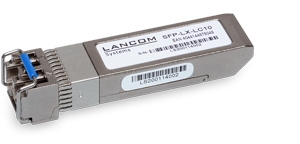

SFP-SX-LC10 / SFP-LX-LC10 / SFP-LR40-LC10 |

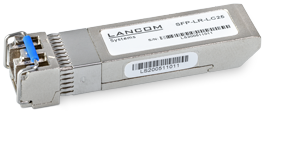

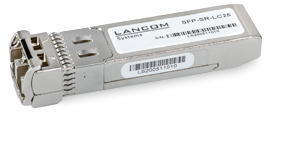

SFP-SR-LC25 / SFP-LR-LC25 |

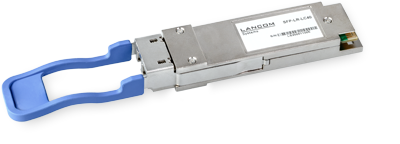

SFP-SR-MPO40 / SFP-LR-LC40 |
SFP-SR-MPO100 / SFP-LR-LC100 |
SFP- BiDi1550-SC1 |
SFP- BiDi1310-LC10 |
SFP-CO1 |
SFP-CO10-MG |
|
|---|---|---|---|---|---|---|---|---|---|
|
|
|
||||||||
|
|
|
|
|
|
|
|
|||
|
|
|
|
|
|
|
max. 4 per switch |
|||
|
|
|
|
|
|
max. 4 per switch |
||||
|
|
|
|
|
max. 4 per switch |
|||||
|
|
|
|
|
|
|
|
max. 2 per switch |
||
|
|
|
|
|
|
max. 2 per switch |
||||
|
|
|
|
|
|
max. 1 per switch |
||||
|
|
|
|
|
max. 1 per switch |
|||||
|
|
|
|
|
only IGS-3128XF |
max. 1 per switch |
||||
|
GS-2328F (EOS) |
|
|
|
|
|||||
|
GS-2300 series (EOS) |
|
|
|
SFP-SX-LC1 / SFP-SX2-LC1 / SFP-LX-LC1 |
SFP-SX-LC10 / SFP-LX-LC10 / SFP-LR40-LC10 |
SFP-CO1 |
SFP- CO10-MG |
SFP- BiDi1550- SC1 |
SFP- BiDi1310- LC10 |
SFP- AON-10 |

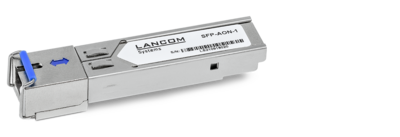

SFP- AON-1 |
SFP- XGSPON-1 |

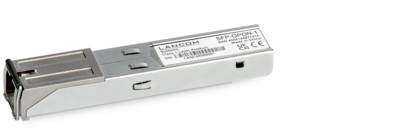

SFP- GPON-1 |
|
|---|---|---|---|---|---|---|---|---|---|---|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
– |
|
– |
|
– |
– |
|
|
|
|
|
|
– |
|
– |
|
– |
– |
|
(only 1800 blackline series) |
|
|
|
|
|
|
– |
|
|
|
|
|
|
|
|
|
– |
|
– |
|
– |
– |
|
|
|
Compatibility of transceiver modules with R&S®LANCOM Unified Firewalls and R&S®LANCOM UF Extension Modules
|
SFP-SX-LC1 / SFP-LX-LC1 |
SFP-SX2-LC1 |
SFP-SX-LC10 / SFP-LX-LC10 |
SFP-LR40-LC10 |
SFP-SR- MPO40 / SFP-LR-LC40 |
SFP-SR-MPO100 / SFP-LR-LC100 |
SFP-CO1 |
SFP-BiDi 1550-SC1 / SFP-BiDi 1310-LC10 |
SFP-AON-1 |
SFP-GPON-1 |
|
|---|---|---|---|---|---|---|---|---|---|---|
|
² |
² |
|
– |
– |
– |
– |
|
– |
– |
|
|
¹ |
² |
|
– |
– |
– |
– |
¹ |
– |
– |
|
|
¹ |
¹ |
² |
¹ ² |
– |
– |
– |
² |
¹ |
|
|
|
¹ |
¹ |
¹ ² |
¹ ² |
– |
– |
¹ |
¹ ² |
¹ |
– |
|
|
4x 1G SFP (UF-X60) |
|
|
|
– |
– |
– |
– |
– |
|
– |
|
2x 10G SFP+ (UF-X60) |
|
² |
|
– |
– |
– |
– |
³ |
– |
– |
|
4x 10G SFP+ (UF-X60) |
² |
² |
|
– |
– |
– |
– |
³ |
– |
– |
|
2x 40G QSFP+ (UF-760) |
– |
– |
– |
– |
|
– |
– |
– |
– |
– |
|
2x 100G QSFP28 (UF-1060) |
– |
– |
– |
– |
– |
|
– |
– |
– |
– |
