R&S®LANCOM XS-6228QF
- Encrypted administration & authentication via SSH/SSL and RADIUS/TACACS
- Access control & traffic protection through IEEE 802.1X, port security (MAC), IP source guard, blocking of unauthorized IP/MAC addresses, ACLs, and storm control
- Network segmentation/isolation with private VLAN, dynamic VLAN assignment, and isolated groups
- Protection against firmware tampering through signed firmware
- Advanced attack protection with DHCP snooping, dynamic ARP inspection, IPv6 first hop security, and DoS defense
- Dynamic policy assignment and centralized management via RADIUS-assigned ACLs
The distribution switch with up to 1 Tbps switching capacity combines high port density with flexible uplink and stacking connectivity in distributed campus networks. Take advantage of the extensive port resources with 20x 10G SFP+, up to 4x FleX-Uplink with 100G aggregated uplink bandwidth, as well as 4x dedicated 50G stacking ports. This makes the R&S®LANCOM XS-6228QF ideally suited both as an aggregation switch between the core and access layers in three-tier architectures and as a core switch or “collapsed backbone” in two-tier networks. Intelligent features such as Virtual Port Channel (VPC), along with redundant hot-swappable power supplies and replaceable fan modules, ensure additional reliability and 100% operational continuity. Network management can be performed either automatically via the R&S®LANCOM Management Cloud or alternatively via web GUI and industry-standard CLI. A Limited Lifetime Warranty including up to 10 years of security updates protects your investment over the long term.
- Multi-Gigabit aggregation switch with 20x 10G SFP+ downlink ports, thereof 4x multi-Gigabit combo ports (SFP+ or 1G / 2.5G / 5G / 10G)
- FleX uplink ports with 4x 25G SFP28 or 2x 40G QSFP+

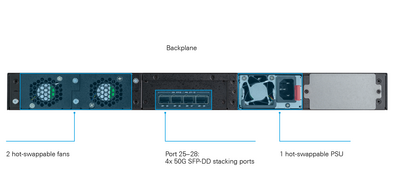

- Non-blocking backplane stacking via 4x 50G SFP-DD-FleX ports
- Support of Virtual Port Channel (VPC or MC-LAG) to implement networks with 100% uptime
- Full layer 3 functionality: VRRP, DHCP, static and policy-based dynamic routing via OSPF v2/v3 and BGP4
- Front-to-back airflow for optimal cooling in 19” racks
- Redundant, hot-swappable PSU and 2x hot-swappable fans for reliability
- Security with configurable access control on all ports as per IEEE 802.1X and access control lists
- Secure remote management through TACACS+, SSH, SSL, and SNMPv3
- Industry standard CLI
- Cloud-managed LAN and switch stacking for a convenient management via the R&S®LANCOM Management Cloud
- Including 2x 19" mounting brackets and 2x 19" telescopic rails (switch slide-in rails) for 19" rack mounting
- Including Limited Lifetime Warranty (LLW)
Multi-Gigabit performance with 28 industry-standard ports

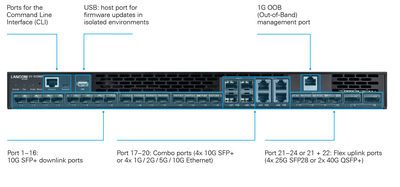

For building a future-proof enterprise network, the R&S®LANCOM XS-6228QF offers high port flexibility and wire-speed performance of 1 Tbps with 20x 10G SFP+ downlink ports (including 4x combo ports), 4x 25G SFP28 or 2x 40G QSFP+ FleX ports, as well as 4x SFP-DD FleX ports. Particularly noteworthy is the versatile usability of the FleX ports: depending on the deployment scenario, they can be configured via four different board configurations as high-speed uplink, stacking, or downlink ports. In addition, all ports of the R&S®LANCOM XS-6228QF are available natively and comply with the industry standard. This eliminates the need for a costly modular design and avoids the purchase of proprietary accessories when switching to R&S®LANCOM switches. Conversely, this ensures a low total cost of ownership (TCO).
Techpaper: Setup guide – configuration options R&S®LANCOM XS-6228QF
Network design with 100% uptime via VPC
Virtual Port Channel (VPC), or Multi-chassis Link Aggregation Group (MC-LAG), is the preferred solution for increasing the reliability of large network infrastructures. If you link two R&S®LANCOM XS-6228QF in a VPC network and connect the underlying network components redundantly, the other switch remains active in the event of a failure or during in-service software update (ISSU) of one of the VPC-connected switches, thus ensuring 100% uptime. This is possible because both switches remain physically independent devices that merely form a virtual network. In addition, the link speed of the underlying network components is multiplied, as a VPC network allows multiple connections to the underlying level (active/active). For constant data forwarding, the switches exchange important information about the network, such as MAC tables, via their peer link.

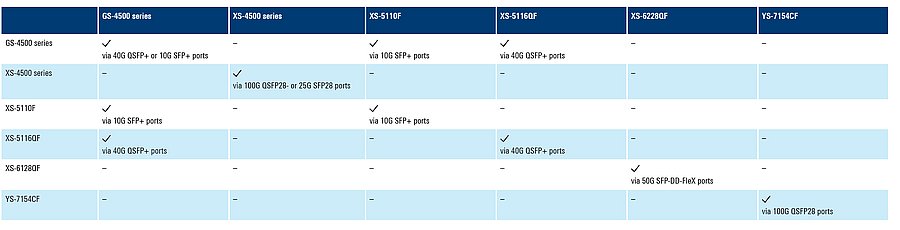

Flexible, investment-proof network topologies with high-performance stacking
As a high-performance distribution instance for setting up hierarchical switch infrastructures, the R&S®LANCOM XS-6228QF flexibly networks aggregation and access switches in large, distributed enterprise networks. Thanks to stacking functions, a network uptime of almost 100% can be realized, as several physical switches are combined and efficiently managed as one logical unit. In the event of a firmware update, the stack is restarted, for which a maintenance window must be scheduled. The entire stack can be conveniently managed and monitored via cloud-managed switch stacking using the R&S®LANCOM Management Cloud.
Cloud-managed LAN with port templates and Secure Terminal Access
With the R&S®LANCOM Management Cloud (R&S®LMC) and Cloud-managed LAN, the R&S®LANCOM XS-6228QF offers quick and easy network integration as well as automatic…
What is the best switch for your use case?
As a reliable basis for high-performance network infrastructures, the R&S®LANCOM switch portfolio is the first choice. But how do the R&S®LANCOM switch series differ? And which switch is the right one for your requirements?
You will find answers to these and other questions in our practical comparison options. Try it out right away:
Use the AI chatbot for product consultation
With the “Digital Assistant”, an AI-based chatbot is available to you around the clock for the R&S Networks and Cybersecurity product portfolio of routers / gateways, firewalls, switches and access points.
Use it for initial guidance and product recommendations, as well as for general questions about features, areas of application and typical networking scenarios. For individual configuration questions, your support contact will of course continue to be happy to assist you.
We look forward to your questions and hope you enjoy trying it out!
Three-tier switch networks – 100% from R&S Networks and Cybersecurity
When selecting the appropriate switch architecture, factors such as company size and network availability are crucial. Switching to a three-tier network, including the R&S®LANCOM Core Switch, can be a good choice.
Find out which network design suits you and what the switching solutions series has to offer on the “Time to switch” topic page. Helpful information about switching basics, redundancy concepts, and specific configurations for the optimal use of R&S®LANCOM Switches is available there for free and without registration.
Learn more about the comprehensive R&S®LANCOM switch portfolio
Everything NIS2-compliant and digitally sovereign?
Does your technical equipment fulfil the NIS2 requirements? Does it support your digital sovereignty?
The EU directive on network and information security for enterprises, NIS2, may also affect you and sets strict security standards that could require action.
A plus point: measures for NIS2 compliance also strengthen your digital sovereignty. Put your network to the test now!
¹ Compatible transceiver modules: SFP-SX-LC1, SFP-SX2-LC1, SFP-LX-LC1, SFP-SX-LC10, SFP-LX-LC10, SFP-LR40-LC10, SFP-SR-LC25, SFP-LR-LC25, SFP-SR-MPO40, SFP-LR-LC40, SFP-BiDi1550-SC1, SFP-BiDi1310-LC10, and SFP-CO10-MG (max. 4x SFP-CO10-MG per switch)
² Compatible Direct Attach Cable: SFP-DAC10-1M / -3M, SFP-DAC25-1M / -3M, SFP-DAC40-1M / -3M, and SFP-DD-DAC50-1M / -2,5M
Recommended access switches
For optimal performance in distributed networks, we recommend aggregation via 10G SFP+. The following access switches are equipped with SFP+ ports and are therefore the ideal combination for the R&S®LANCOM XS-6228QF:
- R&S®LANCOM GS-4000 series: GS-4554XUP, GS-4554XP, GS-4554X, GS-4530XUP, GS-4530XP, and GS-4554X
- R&S®LANCOM GS-3000 series: GS-3652XUP, GS-3652XP, GS-3652X, GS-3628XUP, GS-3528XP, GS-3628X, GS-3126XP, GS-3126X, and GS-3510XP
