Switches
Switches for networks of any size
The switch portfolio from R&S Networks and Cybersecurity is the basis for modern network infrastructures in all industries and areas of application. There is a choice of custom-fit versions with Power over Ethernet (PoE) and ports in varying numbers for various throughput rates and applications (1G, 2.5G, 10G, 25G, 40G, 50G, 100G). R&S®LANCOM access switches provide reliable network connections for end devices and other network components such as access points and PCs. The core and aggregation switches additionally enable large, hierarchical switch infrastructures to be set up in campus networks. In combination with the R&S®LANCOM Management Cloud, innovative cloud-managed LAN technology enables fully automated configuration. In addition, the managed switch portfolio convinces with a 5-year replacement service or a Limited Lifetime Warranty, as well as free OS and security updates as part of our lifecycle management.
| Core switch for three-tier campus networks | |||
|---|---|---|---|
| Product Name | Product Info | ||
|

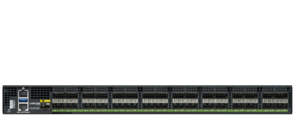

R&S®LANCOM CS-8132F |
32-port 100G fiber core switch 32x 100G QSFP28 Up to 6.4 Tbps switch capacity |
More information |
| Aggregation switches for hierarchical switch infrastructures | |||
|---|---|---|---|
| Product Name | Product Info | ||
|
R&S®LANCOM YS-7154CF |
54-port stackable 25G fiber switch 48x 25G SFP28 / 6x 100G QSFP28 Up to 3.6 Tbps switch capacity |
More information |
|

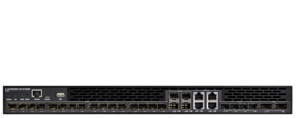

R&S®LANCOM XS-6128QF |
28-port stackable 10G fiber switch 20x 10G SFP+ (4x combo) / 4x uplink / 4x stacking 1.000 Gbps switch capacity |
More information |
|

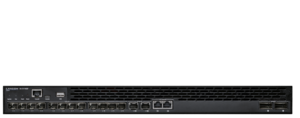

R&S®LANCOM XS-5116QF |
16-port stackable 10G fiber switch 14x 10G SFP+ (2x combo) / 2x 40G QSFP+ uplink/stacking 440 Gbps switch capacity |
More information |
|
R&S®LANCOM XS-5110F |
10-port stackable 10G fiber switch 8x 10G SFP+ / 2x 10G multi-rate Ethernet 200 Gbps switch capacity |
More information |
| Fully managed access switches of the XS-4500 series | |||
|---|---|---|---|
| Product Name | Product Info | ||
|
R&S®LANCOM XS-4554YUP |
54-port 10G PoE++ switch (full L3) 12x 10G / 36x 2.5G / 4x 25G SFP28 / 2x 100G QSFP28 1,020 Gbps switch cap., 1,440 W PoE bud. with 2nd PSU |
More information |
|
R&S®LANCOM XS-4530YUP |
30-port 10G PoE++ switch (full L3) 12x 10G / 12x 2.5G / 4x 25G SFP28 / 2x 100G QSFP28 900 Gbps switch cap., 1,440 W PoE bud. with 2nd PSU |
More information |
| Fully managed access switches of the GS-4500 series | |||
|---|---|---|---|
| Product Name | Product Info | ||
|

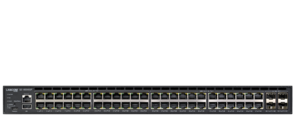

R&S®LANCOM GS-4554XUP |
54-port multi-Gigabit PoE++ switch (full L3) 48x 2.5G / 4x 10G SFP+ / 2x 40G QSFP+ 480 Gbps switch capacity, 1,440 W PoE bud. with 2nd PSU |
More information |
|

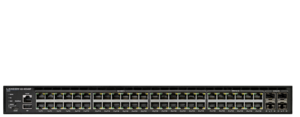

R&S®LANCOM GS-4554XP |
54-port multi-Gigabit PoE+ switch (full L3) 12x 2.5G / 36x 1G / 4x 10G SFP+ / 2x 40G QSFP+ 372 Gbps switch capacity, 1,440 W PoE bud. with 2nd PSU |
More information |
|
R&S®LANCOM GS-4554X |
54-port multi-Gigabit switch (full L3) 12x 2.5G / 36x 1G / 4x 10G SFP+/ 2x 40G QSFP+ 372 Gbps switch capacity |
More information |
|

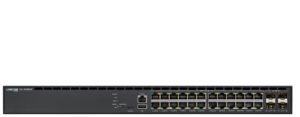

R&S®LANCOM GS-4530XUP |
30-port multi-Gigabit PoE++ switch (full L3) 24x 2.5G / 4x 10G SFP+ / 2x 40G QSFP+ 360 Gbps switch capacity, 1,440 W PoE bud. with 2nd PSU |
More information |
|

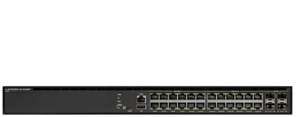

R&S®LANCOM GS-4530XP |
30-port multi-Gigabit PoE+ switch (full L3) 12x 2.5G / 12x 1G / 4x 10G SFP+ / 2x 40G QSFP+ 324 Gbps switch capacity, 720 W PoE budget |
More information |
|

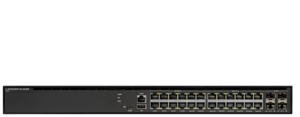

R&S®LANCOM GS-4530X |
30-port multi-Gigabit switch (full L3) 12x 2.5G / 12x 1G / 4x 10G SFP+ / 2x 40G QSFP+ 324 Gbps switch capacity |
More information |
| Fully managed access switches of the XS-3000 series | |||
|---|---|---|---|
| Product Name | Product Info | ||
|
R&S®LANCOM XS-3550YUP |
50-port 10G PoE++ switch (L3-Lite) 8x 10G PoE++/ 40x 1G PoE+ / 2x 25G SFP28 340 Gbps switch capacity, 1,440 W PoE bud. with 2nd PSU |
More information |
|
R&S®LANCOM XS-3526YUP |
26-port 10G PoE++ switch (L3-Lite) 8x 10G PoE++ / 16x 1G PoE+ / 2x 25G SFP28 292 Gbps switch capacity, 720 W PoE budget |
More information |
|
R&S®LANCOM XS-3510YUP |
10-port 10G PoE++ switch (L3-Lite) 4x 10G PoE++ / 4x 1G PoE+ / 2x 25G SFP28 188 Gbps switch capacity, 370 W PoE budget |
More information |
| Fully managed access switches of the GS-3000 series | |||
|---|---|---|---|
| Product Name | Product Info | ||
|
R&S®LANCOM GS-3652XUP |
52-port multi-Gigabit PoE++ switch (L3-Lite) 12x 2.5G / 36x 1G / 4x 10G SFP+ 212 Gbps switch capacity, 1,440 W PoE bud. with 2nd PSU |
More information |
|

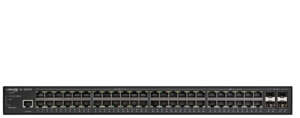

R&S®LANCOM GS-3652XP |
52-port multi-Gigabit PoE+ switch (L3-Lite) 12x 2.5G / 36x 1G / 4x 10G SFP+ 212 Gbps switch capacity, 740 W PoE budget |
More information |
|

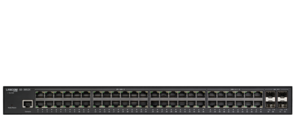

R&S®LANCOM GS-3652X |
52-port multi-Gigabit switch (L3-Lite) 12x 2.5G / 36x 1G / 4x 10G SFP+ 212 Gbps switch capacity |
More information |
|

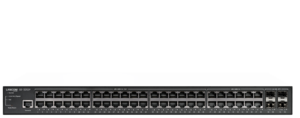

R&S®LANCOM GS-3252P |
52-port Gigabit PoE+ switch (L3-Lite) 48x 1G / 4x 10G SFP+ 176 Gbps switch capacity, 370 W PoE budget |
More information |
|
R&S®LANCOM GS-3628XUP |
28-port multi-Gigabit PoE++ switch (L3-Lite) 12x 2.5G / 12x 1G / 4x 10G SFP+ 164 Gbps switch capacity, 740 W PoE budget |
More information |
|
R&S®LANCOM GS-3628XP |
28-port multi-Gigabit PoE+ switch (L3-Lite) 12x 2,5G / 12x 1G / 4x 10G SFP+ 164 Gbps switch capacity, 370 W PoE budget |
More information |
|

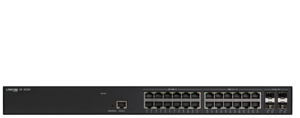

R&S®LANCOM GS-3628X |
28-port multi-Gigabit switch (L3-Lite) 12x 2,5G / 12x 1G / 4x 10G SFP+ 164 Gbps switch capacity |
More information |
|

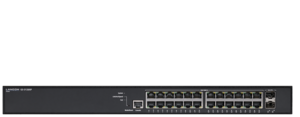

R&S®LANCOM GS-3126XP |
26-port Gigabit PoE+ switch (L3-Lite) 24x 1G / 2x 10G SFP+ 88 Gbps switch capacity, 185 W PoE budget |
More information |
|

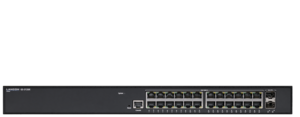

R&S®LANCOM GS-3126X |
26-port Gigabit switch (L3-Lite) 24x 1G / 2x 10G SFP+ 88 Gbps switch capacity |
More information |
|
R&S®LANCOM GS-3510XP |
10-port multi-Gigabit PoE+ switch (L3-Lite) 4x 2.5G / 4x 1G / 2x 10G SFP+ (zero-dB design) 68 Gbps switch capacity, 130 W PoE budget |
More information |
| Fully managed access switches of the IGS-3000 series | |||
|---|---|---|---|
| Product Name | Product Info | ||
|

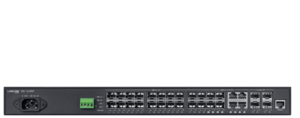

R&S®LANCOM IGS-3128XF |
28-port industrial Gigabit fiber switch (L3-Lite) 24x 1G SFP (4x combo TP/SFP) / 4x 10G SFP+ 128 Gbps switch capacity |
More information |
|

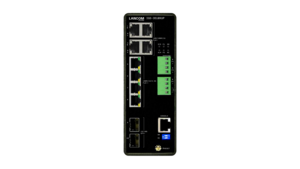

R&S®LANCOM IGS-3510XUP |
10-port industrial multi-Gigabit PoE++ switch (L3-Lite) 4x 2.5G / 4x 1G / 2x 10G SFP+ (fanless, DIN rail mounting) 68 Gbps switch capacity, 360 W PoE budget |
More information |
| Access switches of the GS-2000 series | |||
|---|---|---|---|
| Product Name | Product Info | ||
|

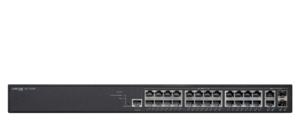

R&S®LANCOM GS-2426P |
26-port Gigabit PoE+ switch (L2+) 24x 1G / 2x combo (TP/SFP) 52 Gbps switch capacity, 185 W PoE budget |
More information |
|

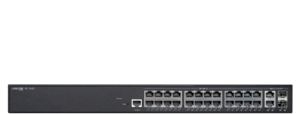

R&S®LANCOM GS-2426 |
26-port Gigabit switch (L2+) 24x 1G / 2x combo (TP/SFP) (fanless) 52 Gbps switch capacity |
More information |
|
R&S®LANCOM GS-2412P |
12-port Gigabit PoE+ switch (L2+) 10x 1G (thereof 8x PoE+) / 2x SFP (fanless) 24 Gbps switch capacity, 130 W PoE budget |
More information |
|
R&S®LANCOM GS-2412 |
12-port Gigabit switch (L2+) 10x 1G / 2x SFP (fanless) 24 Gbps switch capacity |
More information |
| Unmanaged switches of the GS-1000 series | |||
|---|---|---|---|
| Product Name | Product Info | ||
|
R&S®LANCOM GS-1208P |
8-port Gigabit PoE+ switch (unmanaged) 8x 1G (fanless) 16 Gbps switch capacity, 65W PoE budget |
More information |
|
R&S®LANCOM GS-1108 |
8-port Gigabit switch (unmanaged) 8x 1G (fanless) 16 Gbps switch capacity |
More information |
![[Translate to English:] Produktfoto R&S®LANCOM SFAN-XS6](/fileadmin/_processed_/1/2/csm_SFAN-XS6-image-overview_3038d05811.jpg "[Translate to English:] LANCOM SFAN-XS6: hot-swappable Lüfter für XS-6128QF")
![[Translate to English:] Produktbild R&S®LANCOM Switch Rack Mount L250](/fileadmin/_processed_/1/f/csm_LANCOM-Switch-Rack-Mount-L250-overview_b7ea90a8db.png "[Translate to English:] R&S®LANCOM Switch Rack Mount L250")
| Product Name | Product Info | ||
|---|---|---|---|
|
R&S®LANCOM SFAN-CS8 |
Hot-swappable fan modules for uninterrupted operation of the R&S®LANCOM CS-8132F with F2B or B2F airflow |
More information |
|

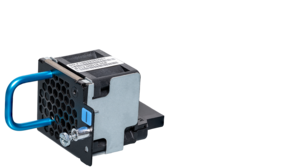

R&S®LANCOM SFAN-YS7 |
Hot-swappable fan modules for uninterrupted operation of the R&S®LANCOM YS-7154CF with F2B or B2F airflow |
More information |
![[Translate to English:] Produktfoto R&S®LANCOM SFAN-XS6](/fileadmin/_processed_/1/2/csm_SFAN-XS6-image-overview_2c02911f2f.jpg "[Translate to English:] LANCOM SFAN-XS6: hot-swappable Lüfter für XS-6128QF")
|
R&S®LANCOM SFAN-XS6 |
Hot-swappable fan module for uninterrupted operation of the R&S®LANCOM XS-6128QF |
More information |
|
R&S®LANCOM transceiver modules |
Versatile SFP port expansion modules for use with fiber-optic or copper |
More information |
|
R&S®LANCOM Direct Attach Cable |
DAC connection cable for simple and reliable interconnections |
More information |
|

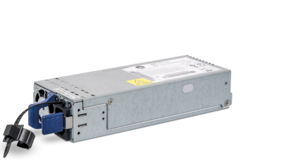

R&S®LANCOM SPSU-920 |
Hot-swappable power supply unit for R&S®LANCOM Access Switches as a PoE budget extension or 2nd/redundant PSU |
More information |
|
R&S®LANCOM SPSU-750 |
Hot-swappable power supply units for uninterrupted operation of R&S®LANCOM CS-8132F (F2B / B2F) |
More information |
|
R&S®LANCOM SPSU-400 |
Hot-swappable power supply units for uninterrupted operation of R&S®LANCOM YS-7154CF (F2B / B2F) |
More information |
|
R&S®LANCOM SPSU-250 |
Hot-swappable power supply unit for R&S®LANCOM aggregation and access switches as a second and redundant PSU |
More information |
|

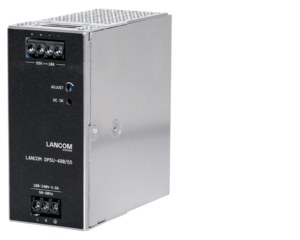

R&S®LANCOM DPSU-480/55 |
DIN rail power supply unit (PSU, 1-phase, 230V AC to 55V DC) for the industrial access switch R&S®LANCOM IGS-3510XUP |
More information |
![[Translate to English:] Produktbild R&S®LANCOM Switch Rack Mount L250](/fileadmin/_processed_/1/f/csm_LANCOM-Switch-Rack-Mount-L250-overview_73d550373d.png "[Translate to English:] R&S®LANCOM Switch Rack Mount L250")
|
R&S®LANCOM Switch Rack Mount L250 |
Robust, L-shaped mounting bracket for rear stabilization of 19" switches in racks |
More information |
