R&S®LANCOM GS-3628XUP
- Encrypted administration & authentication via SSH/SSL and RADIUS/TACACS
- Access control & traffic protection through IEEE 802.1X, port security (MAC), IP source guard, blocking of unauthorized IP/MAC addresses, ACLs, and storm control
- Network segmentation/isolation with private VLAN, dynamic VLAN assignment, and isolated groups
- Protection against firmware tampering through signed firmware
- Advanced attack protection with DHCP snooping, dynamic ARP inspection, IPv6 first hop security, and DoS defense
Multi-Gigabit access switch with PoE++
For scenarios with data-intensive network components that need to get by without extensive electrical installations, this 28-port multi-Gigabit access switch with the latest IEEE 802.3bt Power over Ethernet standard is the perfect choice. 12 out of 24 Gigabit Ethernet ports support 2.5 Gigabit Ethernet and thus form the necessary high-performance basis for operating Wi-Fi 7 access points with LAN connectivity of up to 2.5G, as well as other network components with high-performance requirements. Four additional SFP+ ports and basic Layer 3 functions such as static routing and DHCP make this an intelligent management device with numerous security features for small and medium-sized networks.
- Multi-Gigabit access switch with 12x 2.5 Gigabit Ethernet ports, 12x 1 Gigabit Ethernet ports and 4x SFP+
- Basic Layer 3 features like static routing and DHCP server
- PoE support according to IEEE 802.3af/at (1G ports) and IEEE 802.3bt Type 4 (2.5G ports) with up to 740 watts
- Security through configurable access control on all ports according to IEEE 802.1X
High performance on 28 ports

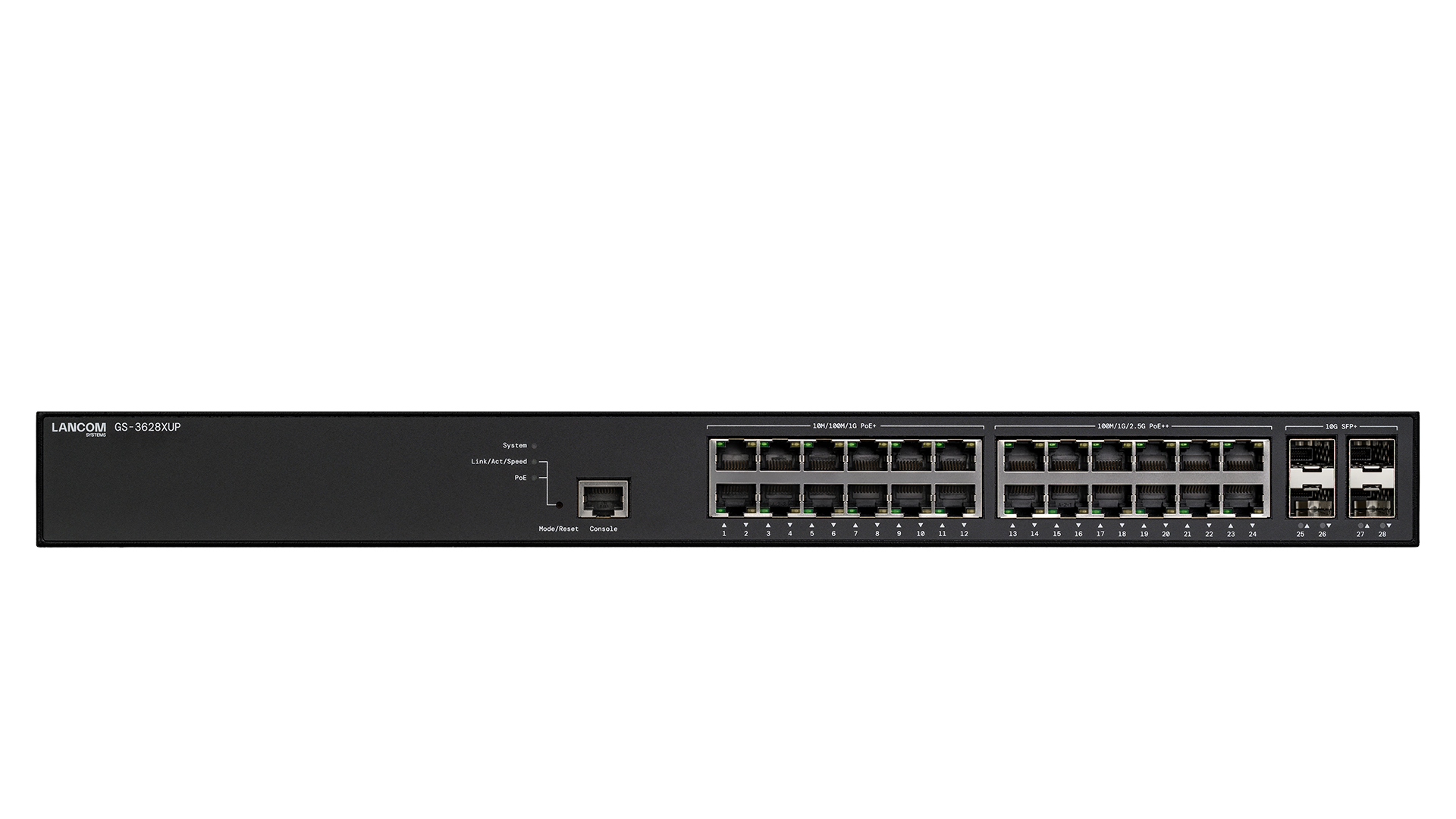

The R&S®LANCOM GS-3628XUP is equipped with 12x 2.5 Gigabit Ethernet ports, 12x Gigabit Ethernet ports, and 4 SFP+ ports supporting transfer rates of up to 10 Gbps. In addition, with a data throughput of 164 Gbps on the backplane, it offers full performance even at high workloads. The multi-Gigabit access switch thus forms the powerful basis for modern network infrastructures in all industries and areas of application.
A high-performance basis for Wi-Fi 7 – PoE included
With 12 2.5 Gigabit Ethernet ports and PoE++ (IEEE 802.3bt), the R&S®LANCOM GS-3628XUP provides a powerful foundation for Wi-Fi 7 access points with LAN connectivity of up to 2.5G. The combination of multi-Gigabit performance and high PoE power meets the increased data transmission and power supply requirements of modern access points. The switch can therefore power up to 12 Wi-Fi 7 access points via its PoE++ ports with LAN connectivity of up to 2.5G, or other high-performance network components – without requiring additional electrical installations. Earlier Wi-Fi generations such as Wi-Fi 6(E) are fully supported.
Central power supply without additional electrical installation
As a powerful PoE switch, the R&S®LANCOM GS-3628XUP supplies connected PoE end devices without the need for additional power supplies or power cabling. It supports the Power over Ethernet standards IEEE 802.3at/af (PoE+) and IEEE 802.3bt (PoE++, Type 4) with up to 90W per port. Thanks to high power reserves with a total output of 740 watts, it is thus ideal for efficient power supply of end devices with the highest energy requirements. In addition to Wi-Fi 6E access points, this also includes end devices such as lighting tubes or touch screens, which can thus be operated via Power over Ethernet for the first time.
What is the best switch for your use case?
As a reliable basis for high-performance network infrastructures, the R&S®LANCOM switch portfolio is the first choice. But how do the R&S®LANCOM switch series differ? And which switch is the right one for your requirements?
You will find answers to these and other questions in our practical comparison options. Try it out right away:
Use the AI chatbot for product consultation
With the “Digital Assistant”, an AI-based chatbot is available to you around the clock for the R&S Networks and Cybersecurity product portfolio of routers / gateways, firewalls, switches and access points.
Use it for initial guidance and product recommendations, as well as for general questions about features, areas of application and typical networking scenarios. For individual configuration questions, your support contact will of course continue to be happy to assist you.
We look forward to your questions and hope you enjoy trying it out!
Three-tier switch networks – 100% from R&S Networks and Cybersecurity
When selecting the appropriate switch architecture, factors such as company size and network availability are crucial. Switching to a three-tier network, including the R&S®LANCOM Core Switch, can be a good choice.
Find out which network design suits you and what the switching solutions series has to offer on the “Time to switch” topic page. Helpful information about switching basics, redundancy concepts, and specific configurations for the optimal use of R&S®LANCOM Switches is available there for free and without registration.
Learn more about the comprehensive R&S®LANCOM switch portfolio
Everything NIS2-compliant and digitally sovereign?
Does your technical equipment fulfil the NIS2 requirements? Does it support your digital sovereignty?
The EU directive on network and information security for enterprises, NIS2, may also affect you and sets strict security standards that could require action.
A plus point: measures for NIS2 compliance also strengthen your digital sovereignty. Put your network to the test now!
¹ Compatible transceiver modules: SFP-SX-LC1, SFP-SX2-LC1, SFP-LX-LC1, SFP-SX-LC10, SFP-LX-LC10, SFP-LR40-LC10, SFP-BiDi1550-SC1, SFP-BiDi1310-LC10, and SFP-CO10-MG (max. 1x SFP-CO10-MG per switch)
² Compatible Direct Attach Cable: SFP-DAC10-1M / -3M
