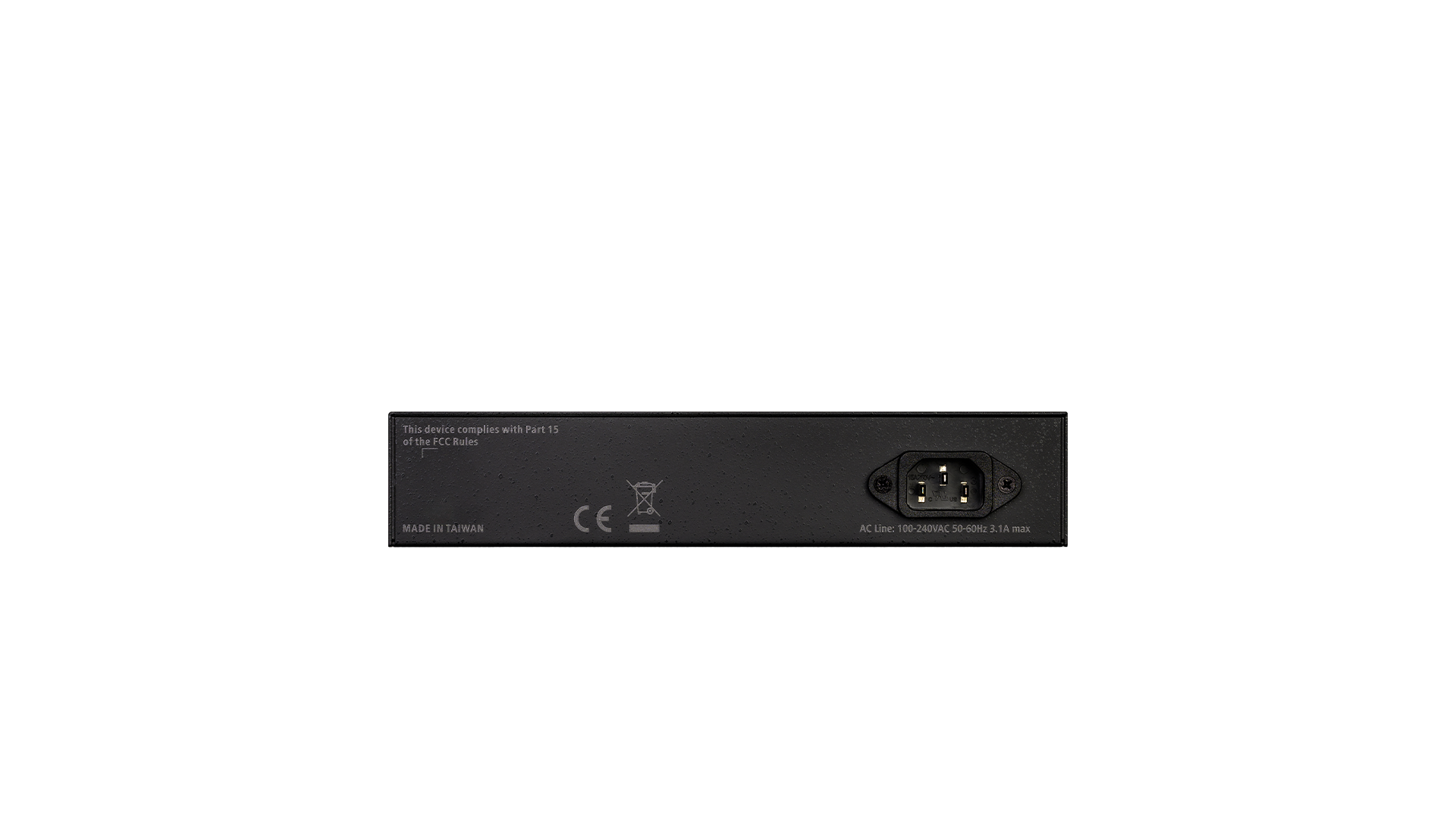

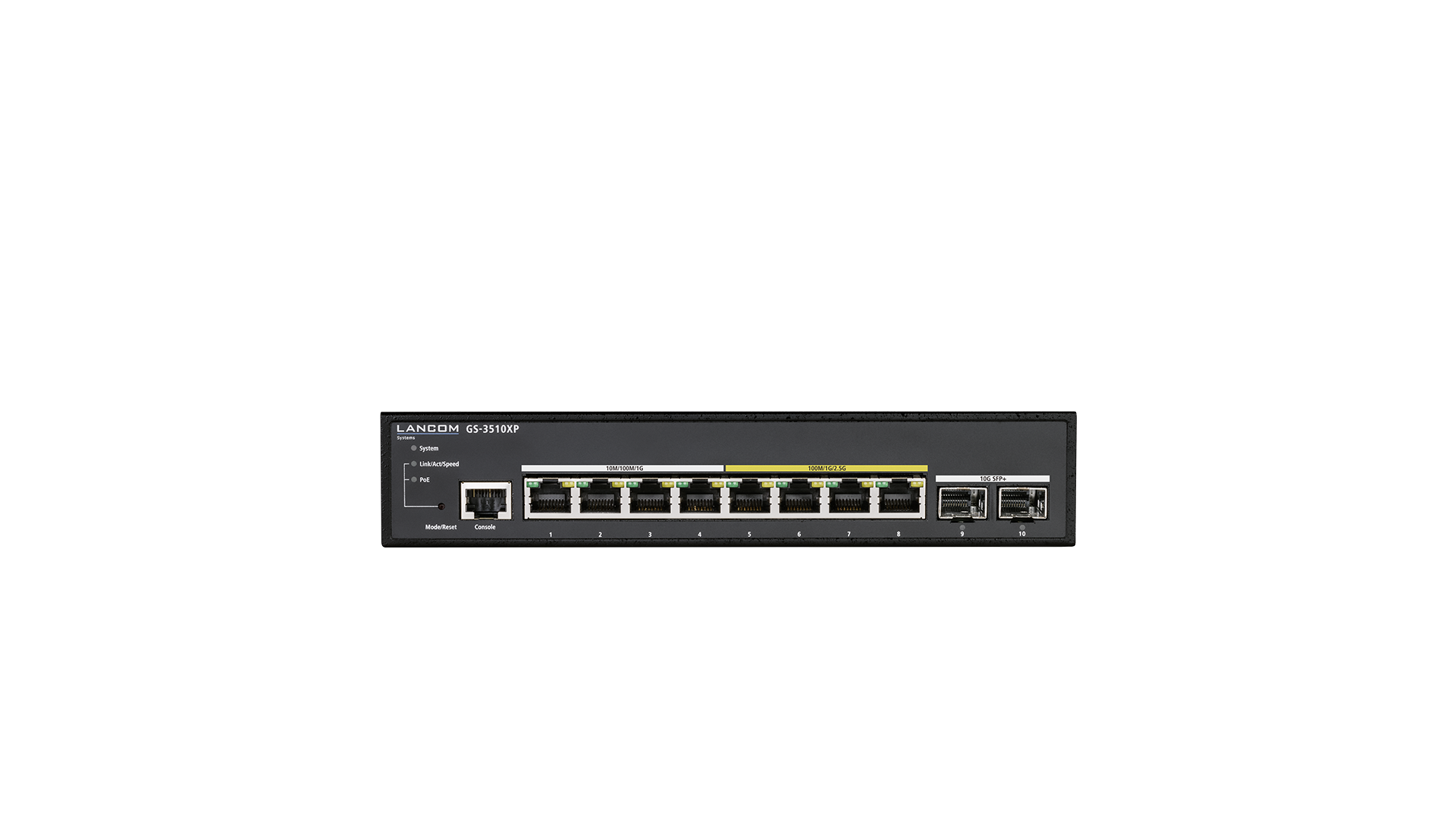

R&S®LANCOM GS-3510XP

With 4 high-performance 2.5 Gigabit Ethernet ports and PoE+ (IEEE 802.3at), the R&S®LANCOM GS-3510XP provides a solid foundation for Wi-Fi 7 access points with PoE+ power supply and LAN connectivity of up to 2.5G, such as the R&S®LANCOM LX-7200(E) or LW-700. The switch can therefore operate up to 4 Wi-Fi 7 access points via its PoE+ ports with LAN connectivity of up to 2.5G, or other network components – without requiring additional electrical installations. Earlier Wi-Fi generations such as Wi-Fi 6(E) are fully supported.

Get to know more about Wi-Fi 7

The R&S®LANCOM GS-3510XP is a high-performance PoE switch that directly powers PoE devices connected to it; there is no need for additional power supply units or cabling. It supports the two Power-over-Ethernet standards, IEEE 802.3af and IEEE 802.3at (PoE+). It has high power-output reserves and an PoE budget of 130 watts makes it an effective power supply for PoE devices, even with its Zero-dB design with a cooling function starting at 40°C ambient temperatur.

The R&S®LANCOM GS-3510XP supports the basic layer-3 feature static routing and thus the shift of certain routing tasks from the router to the switch. Administrator-predefined network routes, through one or multiple network segments, enable fast data transfer especially in scenarios with high data volumes and relieve the router accordingly. Newly available router capacities can then additionally be used to manage external data traffic. As a result, the entire network efficiency is increased.

Secure communication protocols such as SSH, SSL and SNMPv3 make the R&S®LANCOM GS-3510XP ideal for professional remote network management. The switch also support the TACACS+ protocol for authentication, authorization, and accounting. This optimized solution promises maximum security for multi-site network management and monitoring.

The R&S®LANCOM GS-3510XP offers fast and easy network integration and automatic configuration assignment with the R&S®LANCOM Management Cloud - without manual configuration. In this way, even complex networking scenarios are easy to administer. SD-LAN eliminates the need for a single device configuration for holistic network orchestration. In addition, automatic VLAN assignment to the desired switch ports is possible. The configurations can be coordinated with each other across locations and network architectures, and at the same time rolled out or updated at the click of a mouse.

Thanks to its dual-stack implementation, the R&S®LANCOM GS-3510XP operates in pure IPv4, pure IPv6 or in mixed networks. Applications such as SSL, SSH, Telnet or TFTP can continue to be operated on IPv6 networks. Supported IPv6 features includes stateless auto configuration, neighbor detection, and MLD snooping.
