R&S®LANCOM IGR-750EF-5G
Secure SD-WAN over 5G in a compact metal housing
For secure site connectivity in demanding infrastructure, the R&S®LANCOM IGR-750EF-5G combines advanced 5G cellular technology with flexible WAN connectivity via fiber optics (SFP) and Gigabit Ethernet. Support for two nano SIM cards or an eSIM enables quick and flexible switching between mobile networks. Reliable continuous operation in harsh environments is ensured by the compact, fanless full-metal housing with IP50 protection for enhanced dust resistance, as well as an extended operating temperature range from -20 °C to +50 °C. Direct DIN rail mounting enables space-saving integration into control cabinets, making the Secure SD-WAN gateway ideally suited for connecting critical infrastructure in the energy sector, building automation, and distributed IT infrastructures. Secure SD-WAN engineered in Germany, IPSec and WireGuard VPN, and centralized management via the R&S®LANCOM Management Cloud enable secure, automated management of distributed sites while reducing resource-intensive maintenance tasks in hard-to-access deployment locations.
- Secure SD-WAN – centralized cloud management with secure network separation, automated provisioning, and intelligent path control
- Integrated 5G modem, usable with 1x eSIM or 2x physical SIM cards (dual-SIM), for high network availability and low latencies in primary 4G/5G operation or in parallel with other access types
- High-speed Internet via fiber optics (GPON and AON modules available separately) and Gigabit Ethernet for connection of external modems
- Load balancing for the active/active operation of several Internet access lines and maximization of the available bandwidth

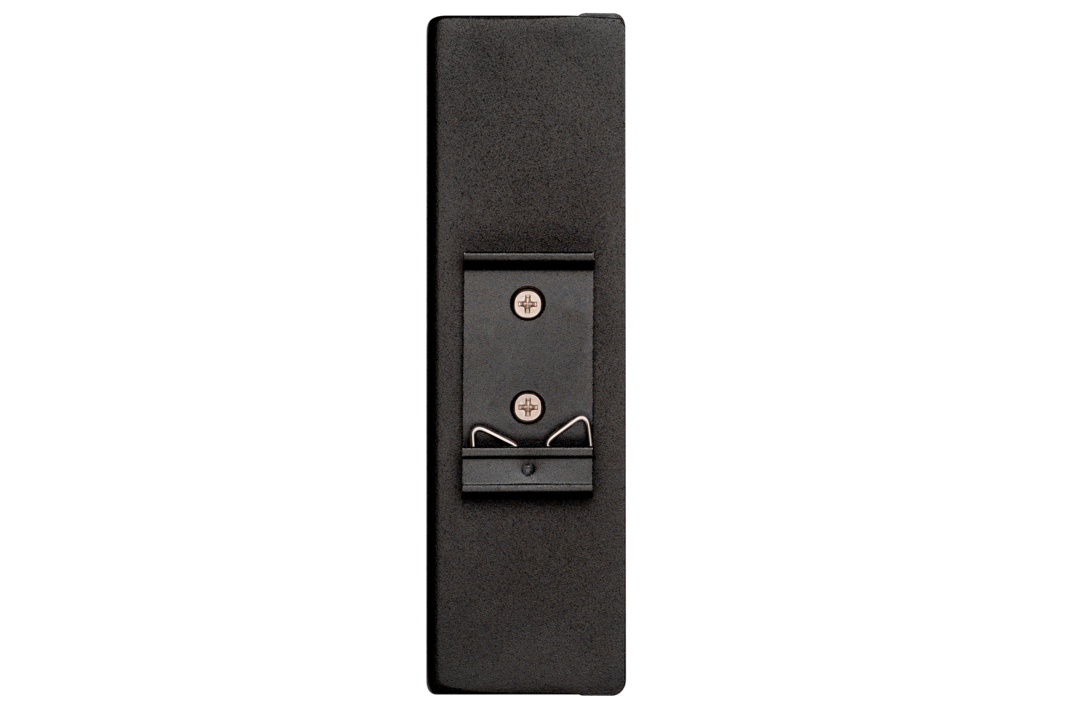

- Robust, compact IP50 all-metal housing for direct DIN-rail mounting
- Reliable even at demanding temperatures (-20 °C to +50 °C)
- Secure site connectivity with 5 simultaneous VPN connections (25 channels optional)
- Flexible power supply via 12 V DC or 9–36 V DC wide-range input, including protection against reverse polarity and voltage spikes
- Integrated stateful-inspection firewall with intrusion detection and Denial-of-Service protection
- Network virtualization with up to 16 networks on one device (ARF)
- Extended protection with the content filter of the R&S®LANCOM Security Essentials Option
Intelligent networking with Secure SD-WAN
With Secure SD-WAN, you can centrally manage and protect your entire network: via the R&S®LANCOM Management Cloud (R&S®LMC), you define global security and access policies that are rolled out fully automatically and continuously monitored – from headquarters to branch offices. This significantly accelerates rollouts, configurations, and updates.
Encrypted Auto VPNs, High Scalability and Advanced Mesh VPNs, Dynamic Path Selection, and active/active WAN with intelligent load balancing ensure that business-critical applications always use the optimal transmission path. In addition, the R&S®LANCOM Security Essentials option further enhances security through centralized content filtering and URL blocking – for resilient and future-proof site networking.
High-bandwidth WAN connectivity via fiber and 5G
Fast internet – regardless of the access type: Depending on availability, use the integrated SFP port to connect to FTTH fiber-optic lines via a separately available transceiver module (GPON/AON), or use the 5G modem (via SIM card slot or eSIM) for primary operation, intelligent backup scenarios, as well as hybrid active/active architectures. Thanks to low latency and stable bandwidth, both access types are ideal for time-critical and data-intensive cloud, edge, and real-time applications. Gigabit Ethernet WAN is available for connecting external provider modems.
Compact hardware for demanding networking scenarios
Where space is limited and availability is critical, the R&S®LANCOM IGR-750EF-5G demonstrates its strengths. Its rugged, fanless full-metal housing rated to IP50 enables direct DIN rail mounting while providing reliable protection against external influences. This allows the Secure SD-WAN gateway to be integrated into control cabinets in a space-saving manner and deployed for connecting critical infrastructure in the energy sector, building automation, and distributed IT infrastructures.
The 9–36 V DC wide-range power input enables direct connection to various power supplies without requiring additional DC/DC converters. This simplifies integration into existing installations and reduces cabling effort. Integrated protection mechanisms against reverse polarity and overvoltage increase operational reliability and protect the device from typical electrical stresses. With an extended operating temperature range of -20 °C to +50 °C, the device ensures reliable wireless connectivity even under demanding conditions.
Multi-layered security – automatically integrated
Security mechanisms in R&S®LANCOM routers are not an add-on, but are firmly integrated from the very beginning (“Built-in Security”). The stateful inspection firewall embedded in the LCOS operating system, along with the…
Is VPN ready for the post-quantum era?
The ongoing development of quantum computers presents new challenges for traditional encryption technologies such as VPNs. Virtual Private Networks (VPNs), which often rely on the Internet Key Exchange (IKE) protocol, serve as the backbone of many modern IT security solutions. A crucial step toward mitigating the threats posed by quantum computers is the introduction of post-quantum preshared keys (PQ-PSKs or PPKs) in the IKEv2 protocol – now implemented in the firmware LCOS 10.90 of R&S®LANCOM SD-WAN gateways and WLAN controllers.
Read our whitepaper to discover how PQ-PSKs already provide an initial layer of protection and how R&S Networks and Cybersecurity not only strategically prepares for post-quantum security but also actively applies and implements these technologies – ensuring your IT network is future-proof.
Site networking with Secure SD-WAN
Centralized security, high availability, and maximum control – modern enterprise networks have to deliver more than ever before. With a R&S®LANCOM Secure SD-WAN Gateway, you create the foundation for secure, centrally managed networking of all sites. Security and access policies are implemented consistently and continuously monitored – regardless of location or type of connection. Combined with the R&S®LANCOM Management Cloud, you benefit from automated rollouts, encrypted VPN connections, and intelligent path control for business-critical applications.
Find out here what advantages R&S®LANCOM Secure SD-WAN offers for your network:
5G connectivity for business-critical networks
5G is the latest generation of cellular technology and builds on the foundation of 4G/LTE. Using the 5G New Radio (NR) air interface, the standard enables significantly higher data rates, lower latency, and increased network capacity. This makes it possible to reliably support demanding applications – from cloud connectivity and real-time data transmission to IoT and Industry 4.0 scenarios.
For businesses, 5G opens up new possibilities for site connectivity, temporary networks, and high-performance backup or primary WAN connections. With its high stability and scalability, the cellular standard is particularly well suited for environments with large numbers of connected devices and business-critical applications.
Everything NIS2-compliant and digitally sovereign?
Does your technical equipment fulfil the NIS2 requirements? Does it support your digital sovereignty?
The EU directive on network and information security for enterprises, NIS2, may also affect you and sets strict security standards that could require action.
A plus point: measures for NIS2 compliance also strengthen your digital sovereignty. Put your network to the test now!
¹ Compatible transceiver modules: SFP-SX-LC1, SFP-SX2-LC1, SFP-LX-LC1, SFP-CO1, SFP-BiDi1550-SC1, SFP-AON-1, SFP-GPON-2, and SFP-GPON-1.
